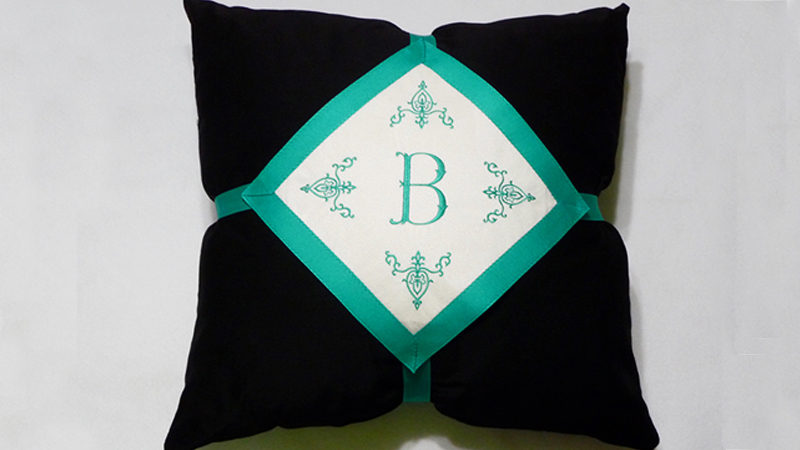

Free Design: Monogrammed Pillow Panel
Finished size of Pillow Panel
- Measures approximately 9-inches from top to bottom and side to side.
Materials and Supplies
Note: The free design fits within a 4-inch hoop. This project features multiple motifs for a combination design stitched in an 8-inch Hoop.
- Brother Embroidery Thread, Bobbin Thread, and size 11 embroidery needle for embroidering.
- SA5929
Brother cut-away stabilizer, or Brother 5810
medium weight tear-away stabilizer. - Temporary adhesive spray for securing fabric without hooping it between the inner and outer ring of the frame.
- Basic sewing notions including a wash out marker, a quilting ruler, and thread to match ribbon.
- A square of solid colored medium weight fabric for the pillow panel piece. See instructions below for recommended sizes. Light weight interfacing for fusing to wrong side of fabric.
- 2 ½ yards of 7/8-inch wide grosgrain ribbon for trimming edges of pillow panel and adding loops to attach panel to pillow.
- Ready-made or custom-made 18-inch pillow.
Tip: Select fabric, ribbon and a pillow in a color combination that compliments your décor.
Note: Machines used for this project: Brother PR670e
for embroidering the pillow panel and Brother NS1750D
for sewing the finished item.
Brother Free Design Downloadfor embroidering the pillow panel and Brother NS1750D
for sewing the finished item.
- 2.08” Wide X 1.93” High.

Steps to Create Pillow Panel
1. Project features a 12-inch square of medium weight faux suede with tricot interfacing fused to the back. To avoid obvious hoop marks on the faux suede, cut-away was placed in an 8-inch hoop, the wrong side of the fabric piece was sprayed with temporary adhesive, and then the fabric layer was secured to the stabilizer. See example in Figure #2. [caption id="attachment_21095" align="aligncenter" width="800"]


Tip: Use a press cloth or press from the wrong side when working with faux suede.

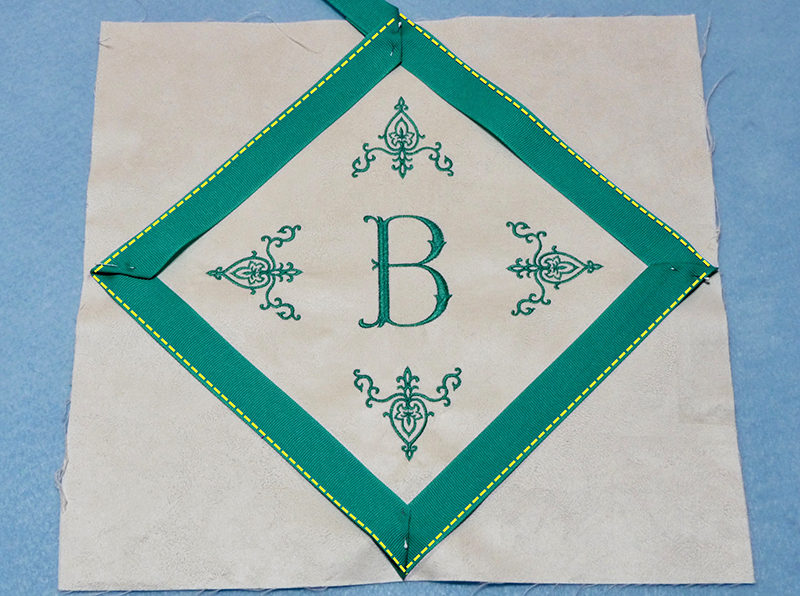

Cut fabric into a 9-inch square, with the design centered on the fabric. Next, use a ruler to draw diagonal lines evenly spaced 2-inches from outer edges of motifs, forming a diamond shape in the process. Beginning at the top, shape ribbon around the diamond, folding the corners and slightly overlapping the marked lines. Leave 1-inch excess then trim ribbon. See Figure #5.
[caption id="attachment_21113" align="aligncenter" width="800"]
Note: Yellow lines indicate markings on fabric underneath ribbon.

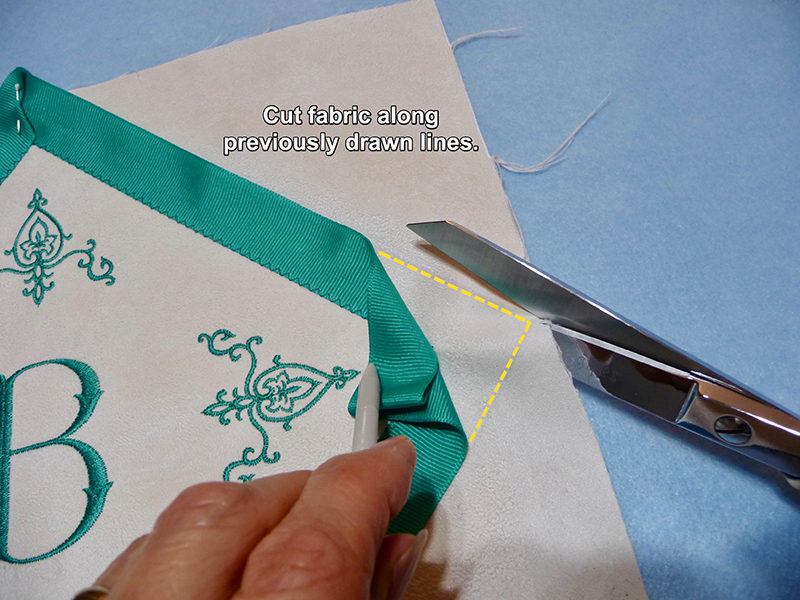

5. Set up sewing machine for a zigzag stitch set for width 2.0 and length 2.0. Add pins to secure ribbon lengths before stitching. Begin by stitching along the inner edge of the ribbon to secure to fabric piece. Place piece on a flat surface and trim fabric along the outside edge of the ribbons, cutting on previously drawn lines. Note that you want to trim just enough so raw edge of fabric is covered by ribbons. See Figure #6.
[caption id="attachment_21114" align="aligncenter" width="800"]
Tip: If you are concerned with your fabric raveling consider using pinking shears for trimming.

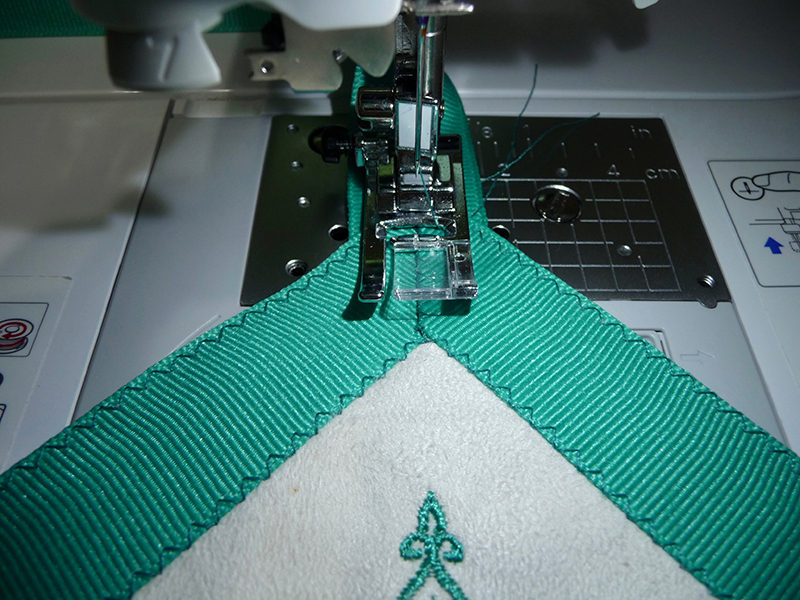

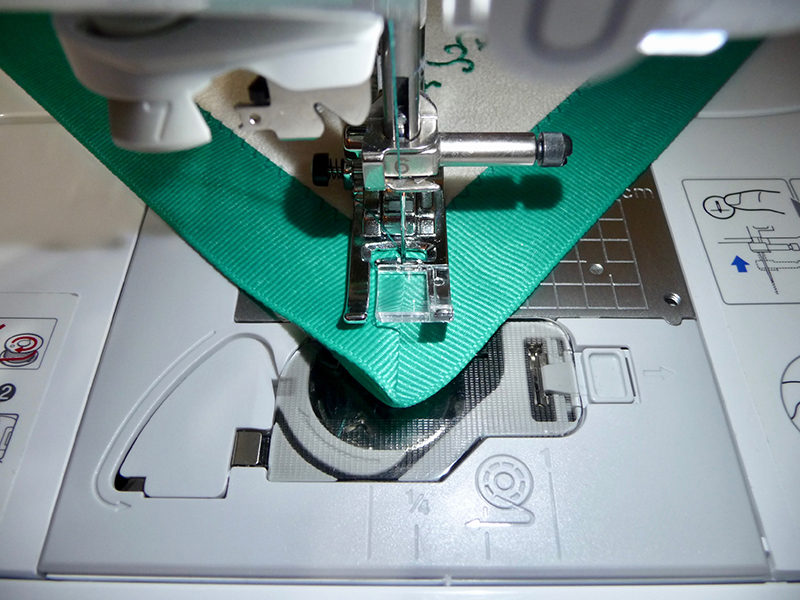

6. Fold raw edges under at the top point and press. Zigzag across folded points to keep them flat. See Figure #7.
[caption id="attachment_21115" align="aligncenter" width="800"]
