When you need a color all-in-one inkjet printer that can keep up with your printing needs without frequent or complicated refills, the Brother MFC-J4345DW XL INKvestment Tank is the right choice! It comes with up to 2 years of ink in-box‡. This model includes 4 times the amount of ink in comparison to the comparable 1-year model‡. The MFC-J4345DW XL is supported by the free Brother Mobile Connect‡ App, a convenient user interface that enables printing, scanning, copying and device management from your smartphone or tablet. Versatile paper handling includes a 20-page capacity automatic document feeder‡, bypass tray and 150-sheet capacity paper tray‡ that adjusts for letter or legal-size paper. The 1.8” LCD color display enables you to easily navigate to powerful features plus print-from and scan-to popular cloud services including Google Drive™, Dropbox, Box, OneDrive and more,‡ directly from the printer. This printer comes with a 2-Year Limited Warranty and At Your Side support for the life of the product.
Main Features
- INK BIG with up to 2 years of ink in-box‡. Experience truly uninterrupted printing, exceptional savings and super convenience with up to 2 years of ink using only the 4 cartridges provided in-box‡.

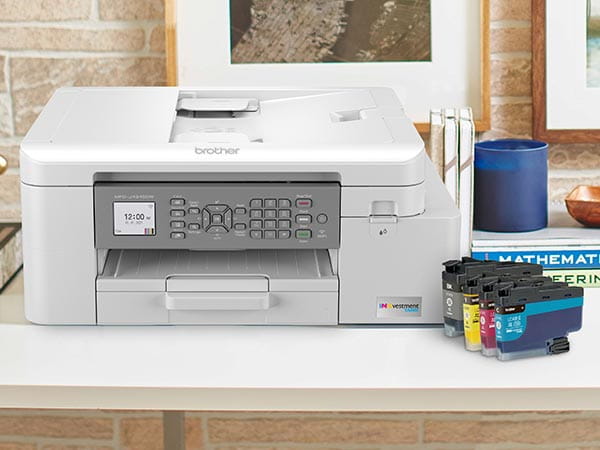

- Unique club model delivers 4X the amount of ink with 5,400 more pages.‡ The MFC- J4345DW XL includes a special club member bonus – enough ink to print up to 5,400 extra pages using only the 4 ink cartridges included in box.‡ For one affordable up-front price you can print for up to 2-years‡ without having to replace ink cartridges.
- Revolutionary INKvestment Tank Technology. The INKvestment Tank’s internal tank works with reengineered, easy-to-use, front-loading INKvestment Tank ink cartridges that eliminate manual refilling by continually supplying ink to the internal tank so you can print more pages without needing to refill. This helps to deliver more pages of convenient, worry-free printing without sacrificing the compact, desktop size.
- Put the power of printing at your fingertips. The simple to use free Brother Mobile Connect‡ App delivers easy onscreen menu navigation for printing, copying, scanning and device management from your mobile device.
- Enjoy worry-free printing using Page Gauge.‡ Help take the guesswork out of when to replace ink by using the Brother Page Gauge, a visual, numerical way to estimate the amount of ink you’ve used and the amount of ink you have remaining.‡ Check ink levels directly from the printer LCD color display or use the free Brother Mobile Connect‡ App to check from virtually anywhere using your mobile device.
- Simple to connect your way. Versatile connection options include built-in wireless,‡ Wi-Fi Direct® or connect locally to a single computer via USB interface. Works with Amazon Alexa.‡
- Versatile paper handling. Use the 20-page capacity automatic document feeder‡, bypass tray, or 150-sheet capacity paper tray‡ that adjusts for letter or legal-size paper. Automatic duplex (2-sided) printing helps save paper.
- Color 1.8” display. Navigate to powerful features plus print-from and scan-to popular cloud services‡ including Google Drive™, Dropbox, OneDrive and more directly from the printer.
- Large page yields mean less frequent ink replacement. When you do need to replace your ink supply, choose Brother Genuine Standard Yield for up to 3,000 BK/1,500 CL pages or High Yield for up to 6,000 BK/5,000 CL pages per replacement INKvestment Tank cartridge for even more convenience and worry-free printing‡.
- Brother At Your Side support. 2-Year Limited Warranty and At Your Side support for the life of your product – visit us at www.brother.com.
The included additional ink gives you up to 5,400 pages of easy, continuous printing‡. One affordable printer price up-front, and you can print for up to two years‡ without having to worry about replacing your Brother ink cartridges.
These revolutionary high-capacity ink cartridge from Brother have been reengineered and redesigned to provide users with superior convenience and exceptional savings.
With this simple onscreen menu navigation you can print, copy, scan, and manage your device. Use the unique Page Gauge feature‡ to check your printer's ink supply, so you always know when it's time to replace your ink.

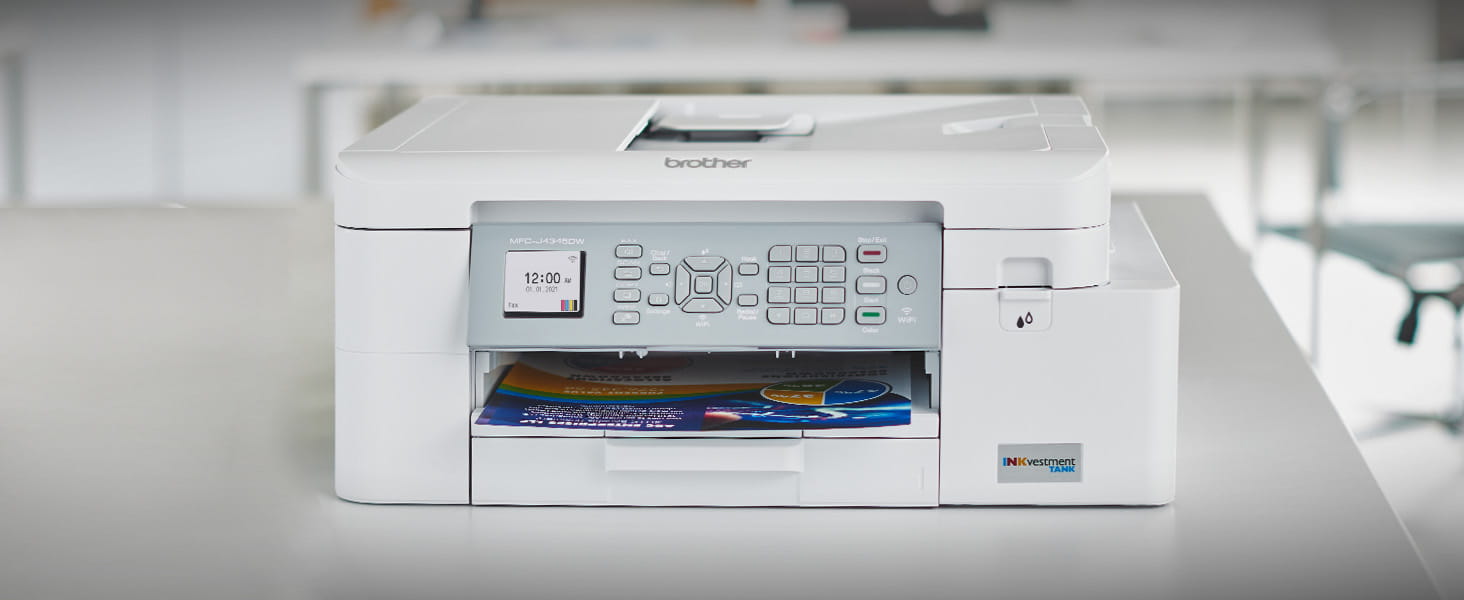

Click on the numbered icons below to explore MFC-J4345DWXL product features.

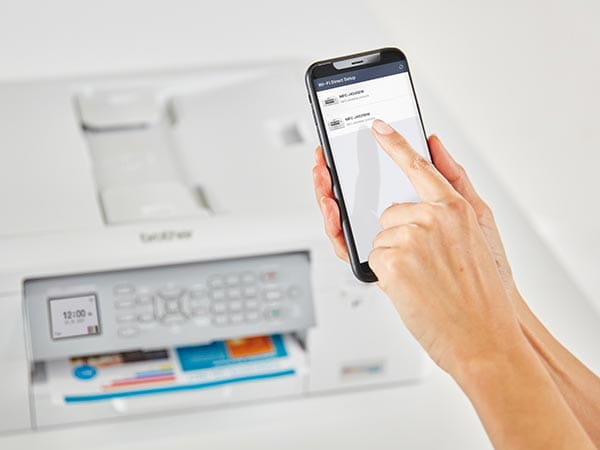

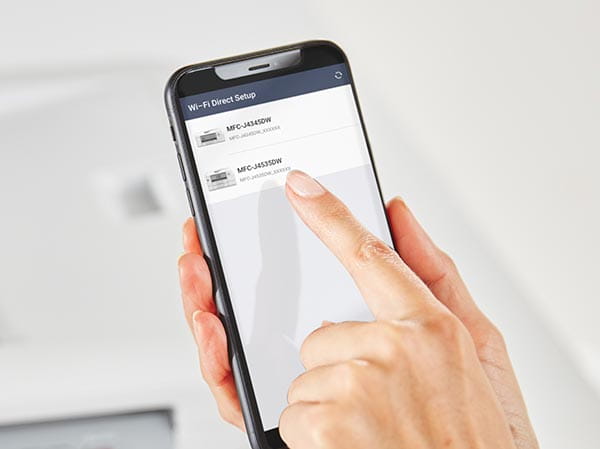

Feature 1: Connect Devices Your Way

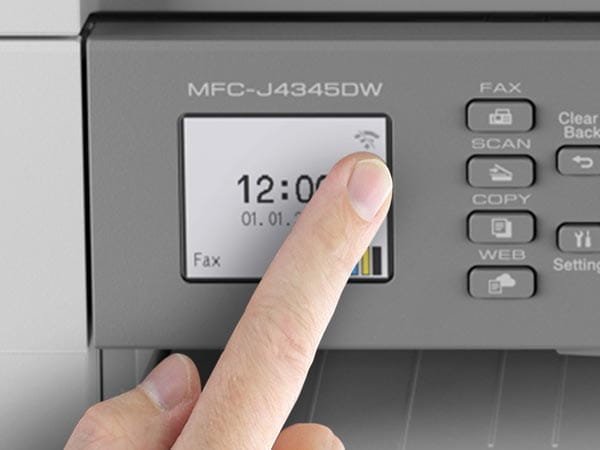

Feature 2: 1.8" Color Display Touchscreen
Feature 3: Brother At Your Side Technical Support
Feature 4: Adaptable Paper Handling

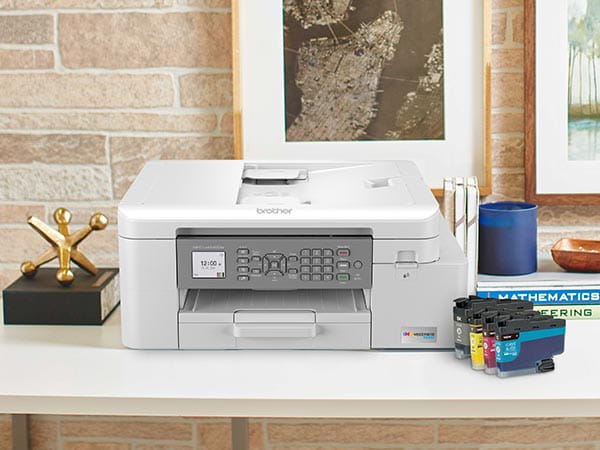

Feature 5: Club Model Delivers 4X More Ink‡

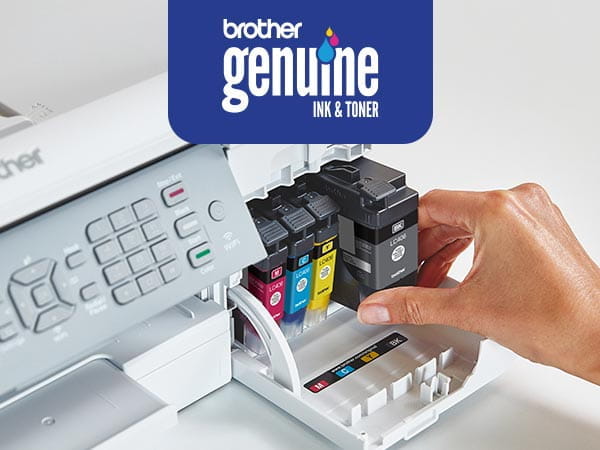

Feature 6: Reliable Printing with Brother Ink Cartridges

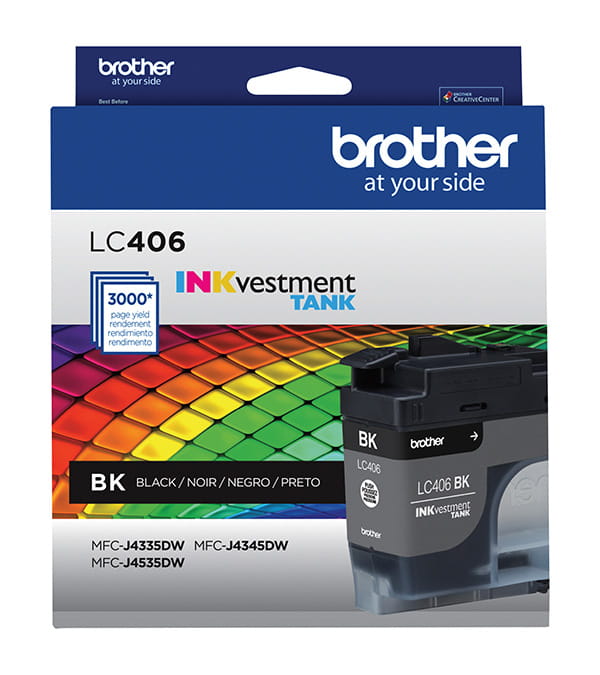

LC4064PK | LC4063PK | LC406BK | LC406C | LC406M | LC406Y | |
---|---|---|---|---|---|---|
Description | Standard Yield 4-pack | Standard Yield 3-pack | Standard Yield | Standard Yield | Standard Yield | Standard Yield |
Approximate Page Yield‡ | 3,000 pages black, 1,500 pages each color | 1,500 pages each | 3,000 pages | 1,500 pages | 1,500 pages | 1,500 pages |
Cartridge Color | Black, Cyan, Magenta, Yellow | Cyan, Magenta, Yellow | Black | Cyan | Magenta | Yellow |
What's in the box | 1 Black, 3 Color Ink Cartridges | 3 Color Ink Cartridges | 1 Black Ink Cartridge | 1 Cyan Ink Cartridge | 1 Magenta Ink Cartridge | 1 Yellow Ink Cartridge |
Brother Genuine Reliability | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |

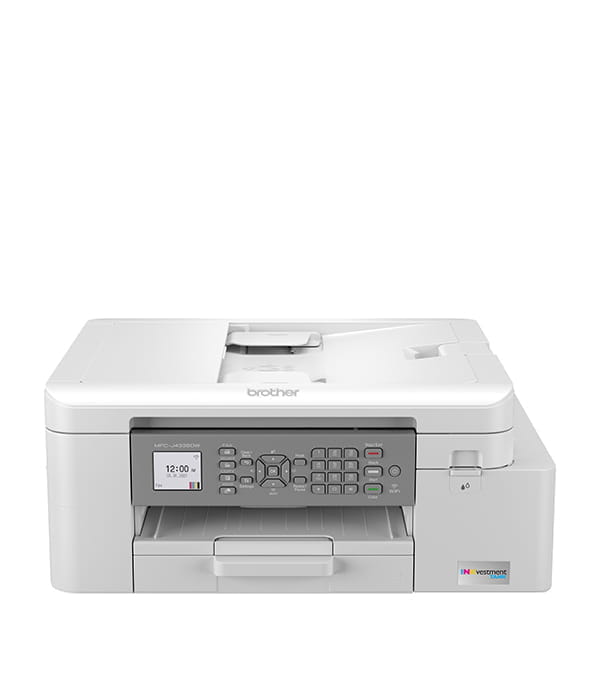

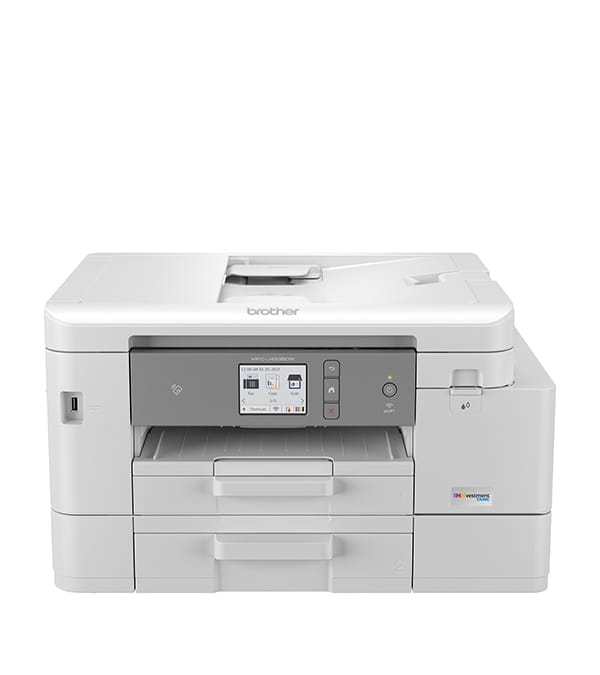

MFCJ4345DWXL | MFCJ1205W | MFCJ4335DW | MFCJ4535DW | |
---|---|---|---|---|
Functions | Print / Copy / Scan / Fax | Print / Copy / Scan | Print / Copy / Scan / Fax | Print / Copy / Scan / Fax |
Ink In Box | Up to 2 Years‡ | Up to 1 Year‡ | Up to 1 Year‡ | Up to 1 Year‡ |
Max ISO Print Speed‡ | 20 ppm / 19 ppm | 16 ppm / 9 ppm | 20 ppm / 19 ppm | 20 ppm / 19 ppm |
Auto Document Feeder | Yes | No | Yes | Yes |
Duplex (2-Sided) Printing | Yes | No | Yes | Yes |
Paper Tray (Max Capacity)‡ | 150 sheets | 150 sheets | 150 sheets | 400 sheets (2 Trays) |
Display | 1.8" Color Display | LED | 1.8" Color Display | 2.7" Touchscreen |
NFC "Mobile Print"‡ | No | No | No | Yes |
Standard Interfaces‡ | Wireless, Wi-Fi Direct®, USB 2.0 | Wireless, Wireless Direct, USB 2.0 | Wireless, Wi-Fi Direct®, USB 2.0 | Wireless, Wi-Fi Direct®, USB 2.0 |
Ethernet | No | No | No | Yes |
Mobile Device Compatibility‡ | AirPrint®, Mopria™ | AirPrint®, Mopria™ | AirPrint®, Mopria™ | AirPrint®, Mopria™ |
Brother Mobile Apps‡ | Yes | Yes | Yes | Yes |
Bluetooth Compatibility | No |
---|---|
Brother Cloud Apps‡ | Scan to Searchable PDF, Fax Forward to Cloud / Email, Scan To PowerPoint, Scan To Excel, Scan to Word, Cloud Secure Print, Easy Scan to E-mail |
Mobile Device Compatibility‡ | AirPrint®, Brother Mobile Connect, Mopria®, Wi-Fi Direct® |
Near Field Communications‡ | No |
One-Push Wireless Setup | Wi-Fi Protected Setup™ |
Standard Interface(s) | Wireless 802.11 b/g/n, Wi Fi Direct, Hi-Speed USB 2.0 |
Supported Network Protocols (IPv4) | SNMPv1/v2c, APIPA (Auto IP), TFTP Server, ARP, BOOTP, Custom Raw Port/Port 9100, DHCP, DNS Resolver, ICMP, LLMNR Responder, LPR/LPD, mDNS, RARP, SNTP Client, Web Services (Print/Scan), WINS/NetBIOS Name Resolution |
Supported Network Protocols (IPv6) | TFTP Server, NDP, RA, DNS Resolver, mDNS, LLMNR Responder, LPR/LPD, Custom Raw Port/Port 9100, SNMPv1/v2c, ICMPv6, SNTP Client, Web Services (Print/Scan) |
Wi-Fi Certified | Yes |
Bluetooth Compatibility | No |
---|---|
Brother Cloud Apps‡ | Scan to Searchable PDF, Fax Forward to Cloud / Email, Scan To PowerPoint, Scan To Excel, Scan to Word, Cloud Secure Print, Easy Scan to E-mail |
Mobile Device Compatibility‡ | AirPrint®, Brother Mobile Connect, Mopria®, Wi-Fi Direct® |
Near Field Communications‡ | No |
One-Push Wireless Setup | Wi-Fi Protected Setup™ |
Standard Interface(s) | Wireless 802.11 b/g/n, Wi Fi Direct, Hi-Speed USB 2.0 |
Supported Network Protocols (IPv4) | SNMPv1/v2c, APIPA (Auto IP), TFTP Server, ARP, BOOTP, Custom Raw Port/Port 9100, DHCP, DNS Resolver, ICMP, LLMNR Responder, LPR/LPD, mDNS, RARP, SNTP Client, Web Services (Print/Scan), WINS/NetBIOS Name Resolution |
Supported Network Protocols (IPv6) | TFTP Server, NDP, RA, DNS Resolver, mDNS, LLMNR Responder, LPR/LPD, Custom Raw Port/Port 9100, SNMPv1/v2c, ICMPv6, SNTP Client, Web Services (Print/Scan) |
Wi-Fi Certified | Yes |
Black Copy Speed (max. ppm) | 13 |
---|---|
Color Copy Speed (max. ppm) | 10.5 |
Copy Capability | Black and White, Color |
Copy Resolution | 1200 x 600 dpi |
Duplex Copying | No |
ID Copy | Yes |
N in 1 Functions | 2in1 / 4in1 |
Poster Function | Yes |
Reduction/Enlargement | 25%-400% |
Sorting Function | Yes |
Carton Dimensions (W" x D" x H") | 9.750 " x 19.500 " x 18.000 " |
---|---|
Carton Weight (lbs) | 23.600 |
Unit Dimensions (W" x D" x H") | 17.1" x 14.2" x 7.1" |
Unit Weight (lbs) | 17.6 |
Carton Dimensions (W" x D" x H") | 9.750 " x 19.500 " x 18.000 " |
---|---|
Carton Weight (lbs) | 23.600 |
Unit Dimensions (W" x D" x H") | 17.1" x 14.2" x 7.1" |
Unit Weight (lbs) | 17.6 |
Duplex Faxing | No |
---|---|
Fax Modem Speed | 14.4k bps |
Fax Page Memory‡ (max. pages) | 170 |
Total Auto Dial Locations | 40 |
Duplex Faxing | No |
---|---|
Fax Modem Speed | 14.4k bps |
Fax Page Memory‡ (max. pages) | 170 |
Total Auto Dial Locations | 40 |
Ink Save Mode | Yes |
---|---|
LCD Display | 1.8" Color Display |
Maximum Monthly Duty Cycle‡ | Up to 30,000 |
Operating System Compatibility | PC: Windows 10, 8.1, 8, 7; Windows Server 2008, 2008 R2, 2012, 2012 R2, 2016 Mac(R): OS X v10.14.6, 10.15.x, 10.11 |
Recommended Monthly Print Volume‡ | 250 to 2,000 pages |
Standard Memory (MB) | 128 |
Ink Save Mode | Yes |
---|---|
LCD Display | 1.8" Color Display |
Maximum Monthly Duty Cycle‡ | Up to 30,000 |
Operating System Compatibility | PC: Windows 10, 8.1, 8, 7; Windows Server 2008, 2008 R2, 2012, 2012 R2, 2016 Mac(R): OS X v10.14.6, 10.15.x, 10.11 |
Recommended Monthly Print Volume‡ | 250 to 2,000 pages |
Standard Memory (MB) | 128 |
Automatic Document Feeder Capacity (max. pages‡) | 20 |
---|---|
Automatic Document Feeder Capacity (max. pages‡) | 20 |
Duplex Printing Capability | Yes |
Manual Feed Capacity‡ (sheets) | 1 |
Maximum Input for ADF (Width/Height) | 8.5"/14" |
Media Type | Plain, Glossy Paper‡, Recycled Paper |
Minimum Input for ADF (Width/Height) | 5.8"/5.8" |
Multi-purpose Tray Capacity‡ (sheets) (sheets) | 1 |
Optional Paper Capacity‡ | Single-Sheet Bypass Tray |
Output Paper Capacity (sheets) | 100 |
Paper Handling Size – Duplex Printing | Letter, Legal, Executive, A4, A5, A6, Envelope (Com-10), Envelope (C5), Envelope (DL), Envelope (Monarch), Folio (8" x 13"), Photo (4" x 6"), Photo (5" x 7"), Photo (5" x 8"), Photo 2L (5" x 7") |
Paper Handling Size - Duplex Printing | A4 |
Paper Handling Size - Multi-Purpose Tray | Letter, Envelope, Legal, Executive, A4, A5, A6, Index Card (5" x 7"), Index Card (5" x 8"), Envelope (Com-10), Envelope (C5), Envelope (DL), Envelope (Monarch), Folio (8" x 13"), Photo (3.5" x 5"), Photo (5" x 7") |
Paper Handling Size - Paper Tray | Letter, Envelope, Legal, Executive, A4, A6, Envelope (C5), Envelope (DL), Envelope (Monarch), Photo (3.5" x 5"), Photo (4" x 6"), Photo (5" x 7"), Photo (5" x 8"), Photo (8" x 10") |
Sheet Weight - ADF (Min/Max) | 17-24 lbs. |
Sheet Weight - Manual Feed (Min/Max) | 17-79 lbs (bond) |
Sheet Weight - Paper Tray (Min/Max) | 17 - 58 lbs. (bond) |
Sorting Function | Yes |
Standard Paper Input Capacity‡ (sheets) | 150 |
Automatic Document Feeder Capacity (max. pages‡) | 20 |
---|---|
Automatic Document Feeder Capacity (max. pages‡) | 20 |
Duplex Printing Capability | Yes |
Manual Feed Capacity‡ (sheets) | 1 |
Maximum Input for ADF (Width/Height) | 8.5"/14" |
Media Type | Plain, Glossy Paper‡, Recycled Paper |
Minimum Input for ADF (Width/Height) | 5.8"/5.8" |
Multi-purpose Tray Capacity‡ (sheets) (sheets) | 1 |
Optional Paper Capacity‡ | Single-Sheet Bypass Tray |
Output Paper Capacity (sheets) | 100 |
Paper Handling Size – Duplex Printing | Letter, Legal, Executive, A4, A5, A6, Envelope (Com-10), Envelope (C5), Envelope (DL), Envelope (Monarch), Folio (8" x 13"), Photo (4" x 6"), Photo (5" x 7"), Photo (5" x 8"), Photo 2L (5" x 7") |
Paper Handling Size - Duplex Printing | A4 |
Paper Handling Size - Multi-Purpose Tray | Letter, Envelope, Legal, Executive, A4, A5, A6, Index Card (5" x 7"), Index Card (5" x 8"), Envelope (Com-10), Envelope (C5), Envelope (DL), Envelope (Monarch), Folio (8" x 13"), Photo (3.5" x 5"), Photo (5" x 7") |
Paper Handling Size - Paper Tray | Letter, Envelope, Legal, Executive, A4, A6, Envelope (C5), Envelope (DL), Envelope (Monarch), Photo (3.5" x 5"), Photo (4" x 6"), Photo (5" x 7"), Photo (5" x 8"), Photo (8" x 10") |
Sheet Weight - ADF (Min/Max) | 17-24 lbs. |
Sheet Weight - Manual Feed (Min/Max) | 17-79 lbs (bond) |
Sheet Weight - Paper Tray (Min/Max) | 17 - 58 lbs. (bond) |
Sorting Function | Yes |
Standard Paper Input Capacity‡ (sheets) | 150 |
ENERGY STAR® Certified | Yes |
---|---|
Machine Noise (Ready/Copying) | 57.0dB/53.0dB |
Operating Environment: Humidity | 20-80% (w/out condensation) |
Operating Environment: Temperature | 50-95° F |
Power Consumption - Power Off/Deep Sleep/Ready/Copying | 0.2W/1.2W/3.5W |
Power Source | AC 120V 50/60Hz |
Automatic Duplex Printing | Yes (default) |
---|---|
Black Print Speed ‡ (max. ppm) | 20 |
Borderless Printing | Yes |
Cloud Services‡ (Print) | Box/Box for Business, OneNote, SharePoint Online, Google Drive™/Google Drive for Business, Evernote®/Evernote Business, OneDrive/OneDrive for Business, Dropbox/Dropbox for Business |
Cloud Services‡ (Print) | Box/Box for Business, OneNote, SharePoint Online, Google Drive™/Google Drive for Business, Evernote®/Evernote Business, OneDrive/OneDrive for Business, Dropbox/Dropbox for Business |
Color Print Speed ‡ (max. ppm) | 19 |
Consumable Type | Ink Cartridge |
Print Resolution (max. dpi) | 1200 x 600 dpi |
Print Technology | Inkjet |
Printer Driver Compatibility‡ | Windows, macOS® |
Advanced Scanning Features | Continuous Scan‡, ADF Auto Deskew, Blank Page Skip |
---|---|
Cloud Services‡ | Google Drive™/Google Drive for Business, OneNote, Box/Box for Business, Evernote®/Evernote Business, OneDrive/OneDrive for Business, Dropbox/Dropbox for Business |
Direct Scanning Destinations‡ | Mobile Devices, Google Drive, Evernote/Evernote for Business, Dropbox, Box/Box for Business, Microsoft OneNote, OneDrive/OneDrive for Business |
Duplex Scanning | No |
Interpolated Scan Resolution‡ (max. dpi) | 19200 x 19200 dpi |
Mobile Device Scanning‡ | Brother Mobile Connect |
Multi-Feed Detection | Yes |
Optical Scan Resolution (max. dpi) | 1200 x 2400 dpi (flatbed), 1200 x 600 dpi (ADF) |
Scan Drivers Included‡ | TWAIN |
Scan File Formats | JPEG (JPG), PDF Single-page/Multi-page (PDF/A, High Compression PDF |
"Scan To" Feature‡ | Workflow (Brother iPrint&Scan)‡, Cloud Services (Brother iPrint&Scan)‡, PC (File, Email, Image, OCR), Cloud Services (Web Connect)‡ |
Scanning Capability | B/W and Color |
Simplex A4 Scan Speeds (black / color)‡ (max. ipm) | 17 / 7 |
Advanced Scanning Features | Continuous Scan‡, ADF Auto Deskew, Blank Page Skip |
---|---|
Cloud Services‡ | Google Drive™/Google Drive for Business, OneNote, Box/Box for Business, Evernote®/Evernote Business, OneDrive/OneDrive for Business, Dropbox/Dropbox for Business |
Direct Scanning Destinations‡ | Mobile Devices, Google Drive, Evernote/Evernote for Business, Dropbox, Box/Box for Business, Microsoft OneNote, OneDrive/OneDrive for Business |
Duplex Scanning | No |
Interpolated Scan Resolution‡ (max. dpi) | 19200 x 19200 dpi |
Mobile Device Scanning‡ | Brother Mobile Connect |
Multi-Feed Detection | Yes |
Optical Scan Resolution (max. dpi) | 1200 x 2400 dpi (flatbed), 1200 x 600 dpi (ADF) |
Scan Drivers Included‡ | TWAIN |
Scan File Formats | JPEG (JPG), PDF Single-page/Multi-page (PDF/A, High Compression PDF |
"Scan To" Feature‡ | Workflow (Brother iPrint&Scan)‡, Cloud Services (Brother iPrint&Scan)‡, PC (File, Email, Image, OCR), Cloud Services (Web Connect)‡ |
Scanning Capability | B/W and Color |
Simplex A4 Scan Speeds (black / color)‡ (max. ipm) | 17 / 7 |
Carton Contents‡ | Brother MFC-J4345DW XL, BK/C/Y/M Starter Ink Cartridge, Product Safety, Quick Setup and Reference Guides Installation, & Telephone Line Cord |
---|---|
"In-Box" Consumables/Yield‡ | Up to 2-yearsof Ink in-box |
USB Cable | Not Included |
Warranty | 2 Year Limited |
Carton Contents‡ | Brother MFC-J4345DW XL, BK/C/Y/M Starter Ink Cartridge, Product Safety, Quick Setup and Reference Guides Installation, & Telephone Line Cord |
---|---|
"In-Box" Consumables/Yield‡ | Up to 2-yearsof Ink in-box |
USB Cable | Not Included |
Warranty | 2 Year Limited |
2 Years of Ink in-box‡ | Based on average monthly print volumes of approximately 300 pages at 60% black pages/40% color pages in accordance with ISO/IEC 24711 using 4 cartridges provided in-box. For additional page yield information, see www.brother.com/pageyield. |
"Scan to" Feature / Cloud Services‡ | Cloud services (Web Connect) requires an Internet connection and an account with desired service. |
Broadcasting (# of locations) / PC Fax Capability‡ | Black and white only. PC-Fax send only for Mac® users. |
ISO-based Copy Speed (BK & CL)‡ | Copy speed using ADF. Based on ISO/IEC 24735. For inkjet copy speed methodology, please visit www.brother -usa.com |
Print Resolution‡ / Copy Resolution‡ / Scan Resolution (maximum)‡ | Resolutions are listed vertical by horizontal dpi. |
Maximum Monthly Duty Cycle‡ | Maximum number of printed pages per month and can be used to compare designed durability between like Brother products. For maximum printer life, it is best to choose a printer with a duty cycle that far exceeds your print requirements. |
Mobile Device Compatibility‡ | Requires connection to a wireless network. AirPrint is a registered trademark of Apple Inc. Mopria™ is a registered and/or unregistered trademark of Mopria Alliance, Inc. in the United States and other countries. Unauthorized use is strictly prohibited. Wi-Fi Direct® is a trademark of Wi-Fi Alliance®. |
Recommended Monthly Print Volume‡ | The recommended range of monthly printed pages to achieve the best possible performance and printer life. Printers are intended to handle occasional usage beyond this range with little or no effect. Consistently printing above the recommended print volume, however, may adversely affect the print quality or life of the machine. It is always best to choose a printer with an appropriate recommended print volume to allow for any anticipated increase in printing needs. |
Borderless Printing‡ | Borderless printing is available for Letter, 4"x6", 5"x8", 5"x7", A4, and A6, paper sizes. Borderless not available with duplex printing. Minimum default margins when not printing borderless is 0.12 inches. |
Brother Cloud Apps‡ | Requires an Internet connection |
Fax Page Memory (max. pages)‡ | Black and white only. Based on ITU-test 1 Chart No.1 at standard resolution with MMR compression. |
5,400 more pages‡ | Based on total in box yields of approximately 7,200 pages with the MFC-J4345DW XL as compared to 1,800 with the MFC-J4335DW, at 60% black pages/40% color pages in accordance with ISO/IEC 24711 using 4 cartridges provided in-box. For additional page yield information, see www.brother.com/pageyield |
Printer Driver Compatibility‡ / Operating System Compatibility‡ | See system requirements chart for additional information. To download drivers and for complete OS compatibility, visit support.brother.com. All trademarks and registered trademarks herein are the property of their respective companies. |
Brother Mobile Connect Application‡ | Requires connection to a wireless network. Brother Mobile Connect free app download is not available in all countries. |
Auto Document Feeder Capacity (max. pages)‡ / Standard Input Paper Capacity (sheets)‡ / Output Capacity‡ | Maximum capacity based on using 20 lb. paper. |
Cloud Services‡ | Requires an Internet connection and an account with desired service. All referenced trademarks and registered trademarks are the property of their respective companies. Google Drive is a trademark of Google LLC. EVERNOTE is a trademark of Evernote Corporation and used under a license. |
Page Gauge‡ | Page Gauge is an estimate for informational purposes only. For actual cartridge yield information refer to www.brother.com/pageyield. |
Wireless‡ | Requires connection to a wireless network. |
Amazon Alexa | Amazon Alexa and all related marks are trademarks of Amazon.com, Inc. or its affiliates. |
Replacement Cartridges‡ | Approximate page yields in accordance with ISO/IEC 24711. LC406BK page yield is approx. 3,000 pages; LC406 C/M/Y page yield is approx. 1,500 pages per cartridge. LC406XLBK page yield is approx. 6,000 pages; LC406XL C/M/Y is approx. 5,000 pages per cartridge. For additional page yield information, see www.brother.com/pageyield. |
