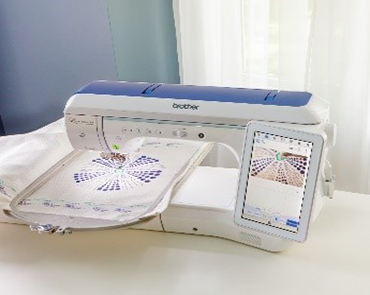

The Luminaire Innov-ís XP1 brilliantly empowers your creativity through innovative uses of beaming light that allow you to preview stitches and embroidery designs directly onto your fabric. Experience true luxury with our largest workspace and embroidery area ever offered, coupled with a revolutionary collection of capabilities to help you achieve perfection in every stitch.
Main Features

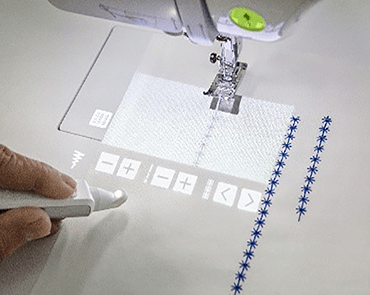

- Revolutionary StitchVision Technology - Clearly preview stitches and embroidery designs directly on your fabric with this intelligent projection system. Preview, audition and edit your designs and stitches in a 5" x 3" virtual preview area.

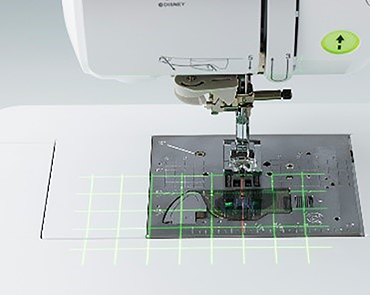

- Guideline Marker Line and Guideline Marker Grid - Project a guideline marker line and marker grid on your fabric, offering you the option of single, double, angled, or grid lines to light your path with precision. Great for creating multiple rows of stitches, parallel stitching, pin tucks, hems, curtain rod pockets, decorative stitches, cross hatch quilting, or smocking.

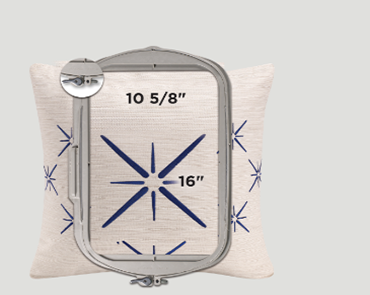

- Large 10 5/8" x 16" embroidery area - The largest and most advanced embroidery frame that Brother has ever offered. Create larger-than-life embroidery with ease.
- Spring Lever Release Frame - Frame includes rubber plates on both sides for a superior grip on fabric, while an ergonomic spring lever release enables easier, clamp-free hooping. Additional frames include 4" x 4", 5" x 7" and 9.5" x 9.5" sizes.

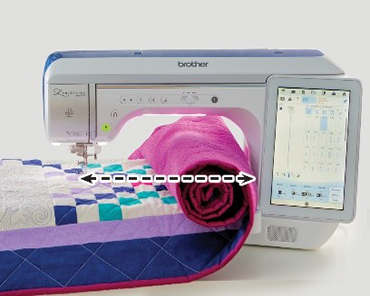

- 65 square inches of workspace, 13.1" needle to arm - Handle virtually any project with ease on 65 square inches of workspace. A generous needle to arm distance of 13.1" is our largest ever, providing the capability to fully accommodate a rolled king-sized quilt!

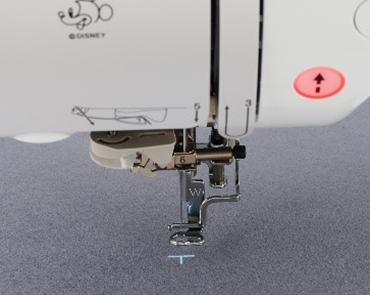

- Built-in embroidery pointer - Displaying a ‘T’ mark in three different colors, the pointer can show the center of your embroidery design as well as the needle drop position on the fabric.

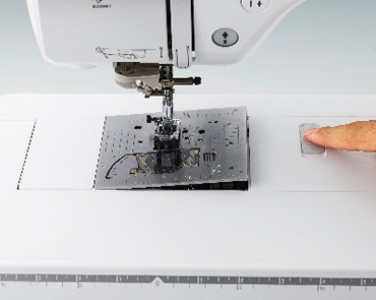

- One Action Needle Plate - Allows for needle plate changes without the use of a screwdriver, saving you time and effort for a seamless sewing experience. Switch between five different levels of bobbin winding to suit your needs.
- Echo quilting - The echo designs follow the contour of the original embroidery and expand outwards, with adjustable spacing to help you customize your designs down to the last detail.
- Expandable library of built-in tutorials - View over 30 enhanced tutorial videos directly on the high-definition LCD display (version 1.2) – with everything from basic operations to embroidery functions.
- Large 10.1” built-in high-definition LCD display with capacitive technology - View your creations in crisp, vivid color and navigate easily with the scrolling menu and large, intuitive icons. The intuitive touch screen works like a tablet with familiar sliding, swiping, scrolling, and pinch-to-zoom for viewing detailed steps, categories, and designs.
This revolutionary sewing, quilting, embroidery and crafting machine brings light to your world and so much more. StitchVision Technology helps you find virtually perfect stitch positioning and more precise previews with an intelligent projection of light. Preview and edit designs and stitches directly on your fabric with the 5” x 3” virtual preview area which displays a guideline marker and a grid to create multiple rows of parallel stitching when you need it. With the Luminaire XP1 you get 65 square inches of workspace and a 13.1” needle to arm area that’s perfect for oversized quilts, or if you want to embroider, use the 10 5/8” x 16” frame with 1,157 built-in embroideries including 192 built-in Disney designs!
| Accessory Storage | Yes |
|---|---|
| Additional Specialty Feet Available | Yes |
| Adjustable Presser Foot Pressure | Yes |
| Adjustable Screen Brightness | Yes |
| Automatic Thread Cutter | Yes |
| Branded Series | Disney |
| Built-in Languages | Yes |
| Built-In Memory | Yes |
| Display Type | LCD |
| Feed Dog Points | 7 |
| Included Accessory Feet | 1/4" Foot, Button Fitting Foot, Zipper Foot, Overcasting Foot, Blindstich Foot, Monogramming Foot, Zigzag Foot, Embroidery Foot, Free-Motion Quilting Foot |
| LCD Display Size (W" x H") | 5.3" x 8.5" |
| Memory Card Reader | Yes |
| Needle Position Key (Up/Down) | Yes |
| Needle Threading System | Automatic |
| Presser Foot Leveling | Yes |
| Quick Set Bobbin | Yes |
| Realistic Preview | Yes |
| Screensaver | Yes |
| Specialty Feet Included | Yes |
| Start/Stop Button | Yes |
| Stitch Selector Type | Touch Panel |
| Thread Sensor | Bobbin Sensor, Upper Thread Sensor |
| Thread Sensor On/Off | Yes |
| UL/CSA Listed | Yes |
| Wide Table Included | No |
| Workspace Area | 5" x 13.1" |
| Carton Dimensions (W" x D" x H") | 24.250 " x 35.000 " x 28.250 " |
|---|---|
| Carton Weight (lbs) | 88.000 |
| Unit Dimensions (W" x D" x H") | 12.7" x 27.2" x 13.8" |
| Unit Weight (lbs) | 43.21 |
| Adjustable Design Icon Size Setting | Yes |
|---|---|
| Adjustable Embroidery Speed Settings | Yes |
| Appliqué Creator Function | Yes |
| Automatic Feed Thread Cutting | Yes |
| Built-In Border Function | Yes |
| Built-In Designs | 1157 |
| Built-in Embroidery Designs featuring Disney/Pixar Characters | 192 |
| Built-in Embroidery Lettering Alphabet Fonts | 24 |
| Color Shuffling Function | Yes |
| Computer Connectivity | Yes |
| Curved Text on Screen Editing | Yes |
| Drag and Drop Editing | Yes |
| Embroidery Position Marker | Yes |
| Frame Designs - Shapes | 10 |
| Frame Designs - Stiches | 14 |
| Included Embroidery Hoops | 4" x 4", 5" x 7" |
| InnovEye Technology | Yes |
| Maximum Embroidery Speed (spm) | 1050 |
| My Custom Design Feature | Yes |
| Onscreen Automatic Density Adjustment | Yes |
| On-Screen Editing | Yes |
| On-Screen Help | Yes |
| Pattern Rotating Increments | 0.1 Degree, 1 Degree, 10 Degrees, 90 Degrees |
| Print and Stitch Technology | Yes |
| Programmable Monochrome Embroidery | Yes |
| Resume Function | Yes |
| Sewing Decorative Stitches with Embroidery Arm Attached | Yes |
| Space Reduction among Embroidery Alphabets | Yes |
| Speed Adjustment | Yes |
| Thread Anchor | Yes |
| Thread Wiper | Yes |
| Trial Position/Layout Function | Yes |
| Built-In Quilting Stitches | Yes |
|---|---|
| Built-in Sewing Lettering Fonts | 3 |
| Drop-Feed | Automatic |
| Free Motion Quilting Foot | Yes |
| Included Quilting Feet | Yes |
| Automatic Height Adjustment (AHA) | Yes |
|---|---|
| Back to Beginning Key | Yes |
| Built-In Stitch Selections (Stitches) | 821 |
| Button Hole Styles | 15 |
| Independent Bobbin Winding Motor | Yes |
| Knee Lifter | Yes |
| Maximum Sewing Speed (Stitches Per Minute) | 1050 |
| Media Type USB | Yes |
| My Custom Stitch Feature | Yes |
| Pivot Function | Yes |
| Reinforcement/reverse Stitches | Yes |
| Sideways Sewing | Yes |
| Speed Control | Yes |
| Stitch Length (mm) | 5 |
| Stitch Width (mm) | 7 |
| Carton Contents‡ | 4 Embroidery Frame Sets, Straight Stitch Needle Plate, Large Accessory Case, Dual King Spool Thread Stand, Adjustable Presser Foot Knee Lever, Grid Sheet Set, ScanImation Scanning Frame, Embroidery Needle Plate Cover, Dual Purpose Stylus |
|---|---|
| USB Cable | No |
| Warranty | 2/6/25 Year Premium Limited Warranty |
