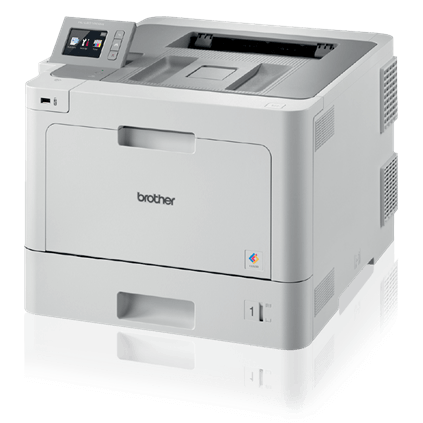

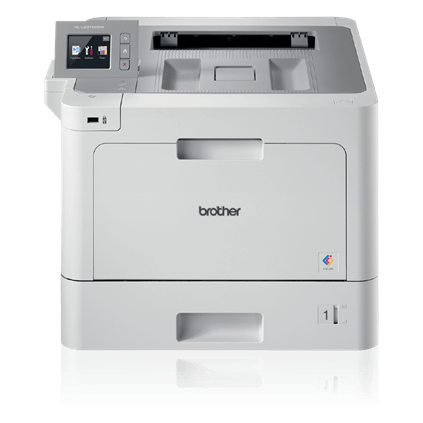

The Brother Workhorse HL-L9310CDW color laser printer is an excellent choice for mid-sized workgroups with demanding print volumes that need a low total cost of ownership and reliable, business quality output. In-box 6,500-page toner cartridges offer built-in value, and ultra high-yield 9,000-page replacement toner cartridges offer low cost output‡. This high-performance printer helps to increase your productivity with print speeds up to 33ppm‡ and a 2.7" Touchscreen display for easy navigation and direct printing from popular business cloud services‡. Scalable for virtually any office, add either optional trays to increase capacity to 1,300 sheets or transform this printer into a floor-standing model with the tower tray option (520 sheets x 4 trays). Advanced security features offer network user authentication and help limit document and device access.
Main Features
- Fast, high-quality printing. Features a business durable design with high-impact business document printing at up to 33 pages per minute in both color and black‡.
- Low total cost of ownership. Includes Brother Genuine super high-yield 6,500-page cartridges for built-in value. For even lower cost printing, use Brother Genuine ultra high-yield 9,000-page replacement cartridges‡.
- Scalable paper handling‡. A 250-sheet capacity paper tray is adjustable for letter or legal size paper along with a 50-sheet capacity multi-purpose tray for printing letterhead and alternative media. For additional capacity, optional paper trays are available in 250-sheet or 500-sheet capacities – up to 1,300 sheets total capacity. Alternatively, a tower tray with stabilizer option includes four 520-sheet trays for a total input capacity of 2,380 sheets.
- Advanced security features. Includes an integrated NFC card reader for badge authentication and Active Directory for network user authentication. Advanced features help protect against unauthorized device access and help control costs by restricting printing on a per user or group basis.
- Flexible network connectivity†. Built-in wireless 802.11b/g/n and Gigabit Ethernet network interfaces to easily setup and share on your wireless or wired network.
- Convenient mobile device printing. Print from your mobile device via‡: AirPrint®, Mopria®, Brother iPrint&Scan, Wi-Fi Direct®, and NFC.
- Adjustable, 2.7" color Touchscreen display. Offers easy menu navigation and printing from popular business cloud services‡ including: DROPBOX, GOOGLE DRIVE™, ONEDRIVE, and more.
- Easily print two-sided documents. Use the automatic duplex print feature to help reduce your printing costs and produce professional two-sided documents, presentations, brochures, and booklets.
- At your side support. 1 year limited warranty with free online, live chat or phone support for the life of your product.
| Industry-Specific Certifications | Cerner Certified, Citrix Ready |
|---|---|
| Mobile Device Compatibility‡ | AirPrint®, Brother iPrint&Scan, Mopria®, Cortado Workplace, Wi-Fi Direct®, NFC |
| One-Push Wireless Setup | Wi-Fi Protected Setup™ |
| Standard Interface(s) | Wireless 802.11 b/g/n, Gigabit Ethernet, Hi-Speed USB 2.0 |
| Supported Network Protocols (IPv4) | Web Services, APIPA (Auto IP), ARP, BOOTP, CIFS Client, Custom Raw Port/Port 9100, DHCP, DNS Resolver, FTP Server, HTTP/HTTPS Server, ICMP, IPP/IPPS, LDAP, LLMNR Responder, LPR/LPD, mDNS, RARP, SMTP Client, SNMPv1/v2c/v3, SNTP Client, TELNET Server, TFTP Client and Server, WINS/NetBIOS Name Resolution |
| Supported Network Protocols (IPv6) | Web Services, NDP, RA, DNS Resolver, mDNS, LLMNR Responder, LPR/LPD, Custom Raw Port/Port 9100, IPP/IPPS, SMTP Client, FTP Server, CIFS Client, TELNET Server, SNMPv1/v2c/v3, HTTP/HTTPS Server, TFTP Client and Server, ICMPv6, SNTP Client, LDAP |
| USB Host Location(s) | Front: Print from USB memory stick or external card reader‡, Back: External card reader‡ |
| System Requirements | Download System Requirements † |
| Carton Dimensions (W" x D" x H") | 24.000 " x 25.500 " x 22.500 " |
|---|---|
| Carton Weight (lbs) | 59.900 |
| Unit Dimensions (W" x D" x H") | 17.4" x 19.1" x 12.3" |
| Unit Weight (lbs) | 48.9 |
| LCD Back-lit | Yes |
|---|---|
| LCD Display | 2.7" Color Touchscreen |
| Maximum Monthly Duty Cycle‡ | 80,000 pages |
| Recommended Monthly Print Volume‡ | Up to 6,000 pages |
| Standard Memory (MB) | 1024 |
| Toner Save Mode | Yes |
| Duplex Printing Capability | Yes |
|---|---|
| Media Type | Plain, Glossy Paper‡, Envelopes (#10), Bond, Labels, Recycled Paper, Colored Paper, Letterhead |
| Multi-purpose Tray Capacity‡ (sheets) | 50 |
| Optional Paper Capacity‡ | LT-330CL (250 sheets x3) or LT-340CL (500 sheets x2) TT-4000 and TC-4000 (Tower Tray with Stabilizer and Connector, includes 520 sheets x 4) |
| Output Paper Capacity (sheets) | 150 |
| Paper Handling Size - Multi-Purpose Tray | Letter, Envelope, Custom Sizes (3.0-8.5" (w), 5.0-14” (l)), Legal, Executive, A4, A5, A6 |
| Paper Handling Size - Paper Tray | Letter, Legal, Executive, A4, A5, A6 |
| Recommended Paper Brands | Avery Laser Label #5160, Hammermill Laser Paper 24 lb., NewPage Futura Laser Gloass 80 lb. Text/32 lb. Bond, Xerox 4200DP 20 lb. |
| Sheet Weight - Multi-Purpose Tray (Min/Max) | 16-43 lbs. (bond) |
| Sheet Weight - Paper Tray (Min/Max) | 16-28 lbs. (bond) |
| Standard Paper Input Capacity‡ (sheets) | 250 |
| ENERGY STAR® Certified | Yes |
|---|---|
| EPA ENERGY STAR® TEC Value (kWh/Week) | 0.578 |
| EPEAT® Registered | Silver |
| Machine Noise (Ready/Printing) | Inaudible / 49dB |
| Operating Environment: Humidity | 20-80% (w/out condensation) |
| Operating Environment: Temperature | 50-90 degrees F |
| Power Consumption - Power Off/Deep Sleep/Sleep/Ready/Printing | 0.02W / 1.4W / 9.5W / 75W / 600W |
| Power Source | AC 120V 50/60Hz |
| Automatic Duplex Printing | Yes (default) |
|---|---|
| Black Print Speed ‡ (max. ppm) | 33 |
| Borderless Printing | No |
| Cloud Services‡ (Print) | SharePoint Online, Box/Box for Business, OneNote, Google Drive™/Google Drive for Business, Evernote®/Evernote Business, OneDrive/OneDrive for Business, Dropbox/Dropbox for Business |
| Color Print Speed ‡ (max. ppm) | 33 |
| Consumable Type | 4 Toner Cartridges and Drum |
| CPU (Processor) Speed (MHz) | 800 |
| Emulation(s) | BR-Script3‡, PCL5c, PCL5e, PCL6 (PCL XL Class 3.0), PDF Version 1.7, XPS Version 1.0 |
| First Page Out Time‡ (max. sec.) | 15 (Black) / 15 (Color) |
| PANTONE® Calibrated | Yes |
| Print Resolution (max. dpi) | 2400 x 600 dpi class |
| Print Technology | Color Laser |
| Printer Driver Compatibility‡ | Windows, macOS®, Linux |
| Security Functions | Integrated NFC Card Reader, Setting Lock, Active Directory (LDAP), Secure Function Lock, Secure Print |
|---|---|
| Security Protocols (Wireless) | SMTP-AUTH, SNMP v3, 802.1x (LEAP, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), Kerberos, IPSec, SSL/TLS (IPPS, HTTPS, SMTP) |
| Wireless Network Security | WEP 64/128 bit, WPA/PSK (TKIP/AES), WPA2-PSK (AES) |
| Carton Contents‡ | (1) Super High Yield Black Toner Cartridge (6,500 pages), (1) Super High Yield Color Toner Cartridges (6,500 pgs each), (1) DR433CL Drum Unit (50,000 pgs), (1) BU330CL Belt Unit (50,000 pgs), (1) WT320CL Waste Toner Box (50,000 pgs), CD-ROM – Includes User's Manual and Printer Drivers, AC Power Cord, Quick Setup Guide |
|---|---|
| Warranty | 1 Year Limited |
| Black Print Speed (max. ppm) | Based on one-sided printing. Change from default setting required. |
| Brother Cloud Apps‡ | Requires an Internet connection. |
| Carton Contents‡ | Approximate toner cartridge yield in accordance with ISO/IEC 19798 (letter/A4). Drum yield is approximately 50,000 pages based on 3 pages per job and 30,000 pages based on 1 page per job and [letter/A4 simplex pages]. The number of pages may be affected due to a variety of factors including but not limited to media type and media size. Belt Unit yield is approximately 50,000 pages based on 1 page per job and 130,000 pages based on 3 pages per job [letter/A4 simplex pages]. The number of pages may be affected due to a variety of factors including but not limited to media type and media size. Waste Toner Box yield is approximate and based on A4 or Letter size single-sided pages. For more information see www.brother.com/pageyield. |
| Cloud Services (Web Connect)‡ | Requires an Internet connection and an account with desired service. All referenced trademarks and registered trademarks are the property of their respective companies. ©2018 Google LLC All rights reserved. Google Drive is a trademark of Google LLC. EVERNOTE is a trademark of Evernote Corporation and used under a license. |
| Color Print Speed (max. ppm) | Based on one-sided printing. Change from default setting required. |
| Toner Cartridge Yield | Approximate toner cartridge yield in accordance with ISO/IEC 19798 (letter/A4). |
| Optional Paper Trays (capacity) | Maximum capacity based on using 20 lb. (bond) paper. Additional purchase required. |
| Recommended Monthly Print Volume‡ | The recommended range of monthly printed pages to achieve the best possible performance and printer life. Printers are intended to handle occasional usage beyond this range with little or no effect. Consistently printing above the recommended print volume, however, may adversely affect the print quality or life of the machine. It is always best to choose a printer with an appropriate recommended print volume to allow for any anticipated increase in printing needs. |
| Standard Input Paper Capacity (sheets)‡ | Max. capacity based on using 20 lb. paper. |
| USB Host Location(s) | USB Host Front: PDF (up to ver. 1.7), JPEG, and XPS via your USB flash memory drive. USB Mass Storage standard from 16MB to 8GB. Support format: FAT12/FAT16/FAT32. USB Host Back: Supports single function HID card readers. |
| Emulation(s) | BR-Script3 is PostScript®3™ compatible. |
| First Time to Print | From Ready Mode and standard tray. |
| Images | Images are for illustrative purposes only. |
| Multi-purpose Tray Capacity‡ (sheets) | Maximum capacity based on using 20 lb (bond) paper. |
| Max. Monthly Duty Cycle‡ | Maximum number of printed pages per month and can be used to compare designed durability between like Brother products. For maximum printer life, it is best to choose a printer with a duty cycle that far exceeds your print requirements. |
| Mobile Device Compatibility‡ | Requires connection to a wireless network. NFC requires the mobile device to have NFC capability and run Android OS 4.4 or later. AirPrint is a registered trademark of Apple Inc. Mopria® is a registered trademark or service mark of Mopria Alliance, Inc. in the United States and other countries. Unauthorized use is strictly prohibited. Wi-Fi Direct is a registered trademark of Wi-Fi Alliance®. |
