The Brother MFC‐L9610CDN Enterprise Color Laser All‐in‐One Printer is an essential component of an optimized fleet that provides enterprise‐level performance, advanced security features, and bold color output in a compact footprint that is ideal for mid to large‐sized workgroups. This high‐performance printer helps to increase productivity with fast print speeds up to 42ppm‡. Delivers built‐in value with included standard‐yield toner cartridges and low‐cost printing by using Brother Genuine TN810XL high‐yield replacement toner cartridges‡. Triple Layer Security features help to limit document and device access and protect against network intrusions. Offers a large standard paper capacity that is scalable as your business needs grow. A large capacity auto document feeder provides fast, two‐sided scanning to a variety of destinations including cloud services‡, while a 7” color touchscreen display allows for the creation of customized workflows. The MFC‐L9610CDN offers flexible connectivity with built‐in Gigabit Ethernet networking and the availability of an optional dual band (2.4GHz / 5GHz) wireless module (NC‐9000W), plus convenient mobile device printing and scanning to meet mobile workforce demands‡.
Main Features
- Fast business color printing. Provides the fastest color laser print speeds ever from Brother – up to 42ppm‡ to help increase workgroup productivity.
- Create professional business documents. Features the boldest laser color output ever from Brother with vivid color and sharp black output for the professional results your reports, brochures, presentations, and other important business documents require.
- Lifetime value. Offers built‐in value with included Brother Genuine 6,500‐page black and 5,000‐page color toner cartridges. For even lower cost printing, use Brother Genuine TN810XL high‐yield replacement toner cartridges for 12,000 pages black and 9,000 pages color‡.
- Advanced security features. Equipped with Triple Layer Security features to help safeguard your network, keep your devices secure, and protect documents in transit to and from print devices. Includes an integrated NFC card reader for easy badge authentication. Add an optional USB memory stick to store secure print jobs. The MFC-L9610CDN passed the strict security testing protocol of Keypoint Intelligence and earned the Buyers Lab (BLI) Security Validation Testing seal for device penetration to ensure further protection against vulnerabilities in the device firmware / OS, ports, print protocols, embedded web page, connectivity avenues, and other areas.

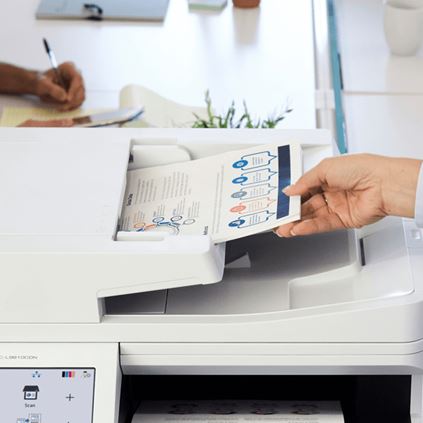

- Fast, high‐volume scanning with advanced capabilities. The 100‐page capacity auto document feeder boasts duplex scan speeds up to 104ipm‡. Scan to popular destinations directly from the touchscreen display including cloud services‡, email, SharePoint, SSH Server (SFTP), and more. Create searchable and editable Microsoft Office documents including Word, Excel, and PowerPoint. Offers advanced scanning features such as scan preview, auto deskew, continuous scanning, blank page skip, and more.
- Large, scalable paper handling. Spend less time refilling paper trays with the 520‐sheet capacity paper tray and 100‐sheet capacity multipurpose tray‡. Total capacity is expandable up to 1,620 sheets with optional trays‡. An optional cabinet can be used to store paper and supplies and turn the printer into a floor‐standing configuration‡.
- Flexible connectivity. Features built‐in Gigabit Ethernet networking to seamlessly set up and share on your wired network, with the availability of an optional dual band (2.4GHz / 5GHz) wireless module (NC‐9000W). Easily print from and scan to a wide variety of mobile devices‡.

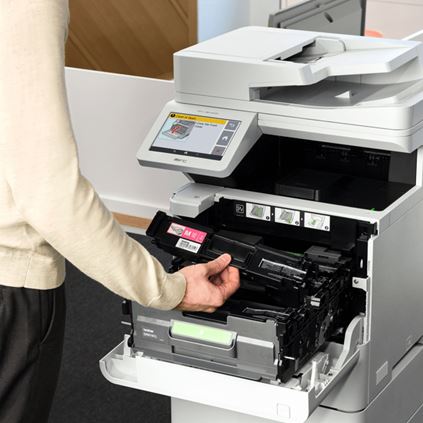

- Easy to set up and use. User friendly design allows for easy replacement of toner and paper. Large 7” color touchscreen display allows for seamless menu navigation and creation of up to 64 customized shortcuts for your most frequently used tasks. Icons can be added to or removed from the touchscreen display and tabs can be named and customized to further tailor the look of the screen for enhanced workflows. For even further customization, personalize the home screen by user when using the built‐in solution Secure Function Lock.
- Device management solutions. Equipped with device management solutions to enable mass distribution of device configurations, security settings, firmware updates, and task automation.
- Eco‐friendly features. ENERGY STAR® certified and EPEAT® Silver rated. Reduce paper costs with default duplex printing. Eco Mode helps to reduce power consumption, while Toner Save Mode helps to reduce toner use.
- At your side support. One‐year limited warranty with free online, live chat, or phone support for the life of your product.
This all-in-one business color laser printer offers functionality and reliable performance for mid to large-sized workgroups. Provides Brother’s fastest color laser print speeds ever – up to 42ppm.‡
Offers built-in value with the included Brother Genuine 6,500‐page black toner and 5,000-page color toner cartridges.‡ Provides low cost printing thanks to high-yield replacement toner cartridges.
Offers Triple Layer Security features to help keep your devices and documents protected and safeguard your network. Includes an integrated NFC card reader for easy badge authentication.
Features our boldest business laser color output ever. Get your company noticed with vivid color and sharp black output to create professional brochures, presentations, and other important documents.
100-page capacity auto document feeder‡ allows for duplex scanning up to 104ipm‡ to a wide range of destinations like cloud services,‡ SharePoint, and more. Create editable Microsoft Office documents.
Click on the numbered icons below to explore MFC-L9610CDN product features.
Feature 1: 7" Color Touchscreen Display

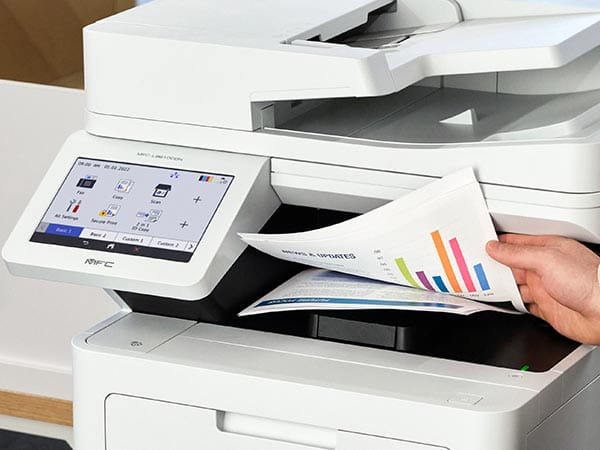

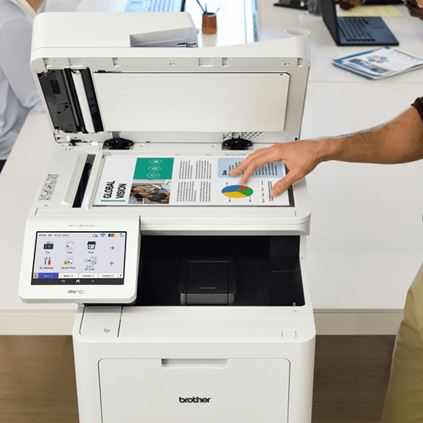

Feature 2: Advanced Scanning Features

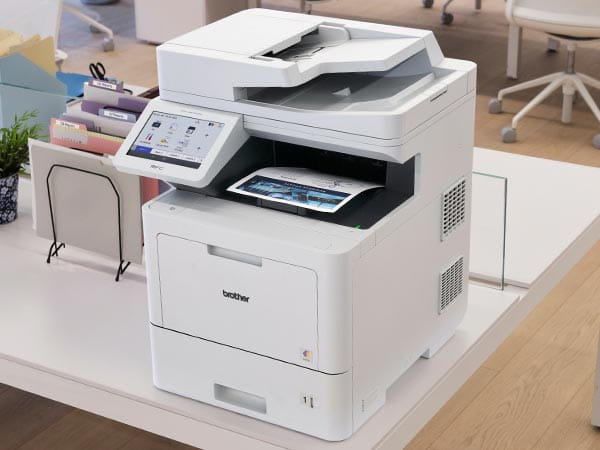

Feature 3: Business Color Laser Printing

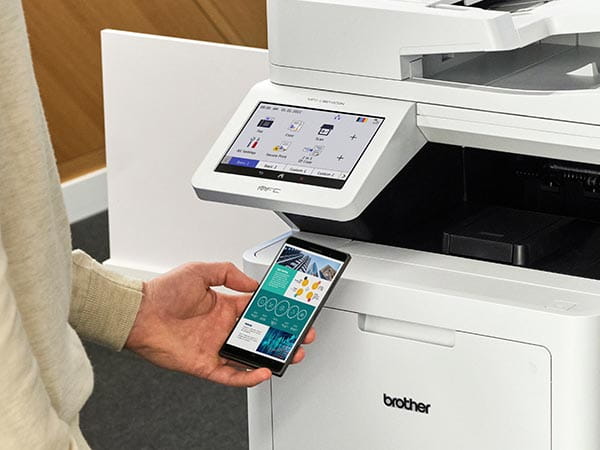

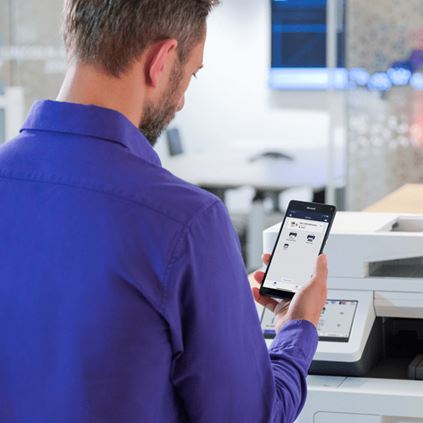

Feature 4: Flexible Connectivity Options

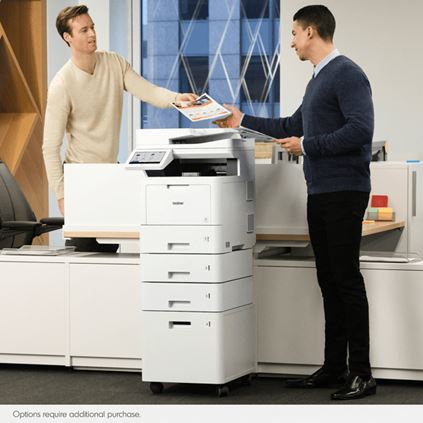

Feature 5: Large, Scalable Paper Capacity

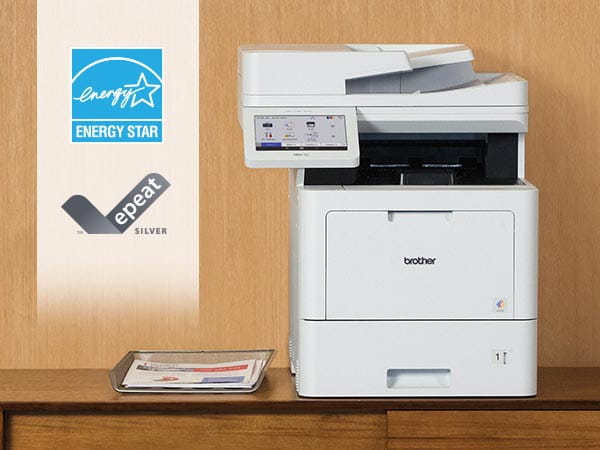

Feature 6: Eco-Friendly Features

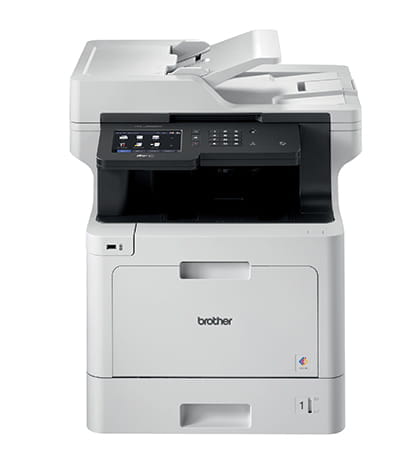

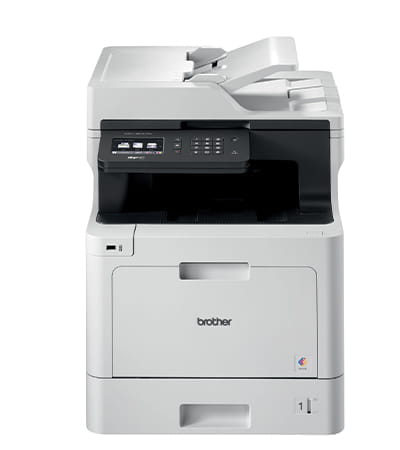

MFCL9610CDN | MFCL8905CDW | MFCL8900CDW | MFCL8610CDW | |
---|---|---|---|---|
Max. Print Speeds (bk/color)‡ | 42ppm / 42ppm | 33ppm / 33ppm | 33ppm / 33ppm | 33ppm / 33ppm |
Input Paper Cap.‡ (option)‡ | 620 / (1,620) | 300 / (1,300) | 300 / (1,300) | 300 / (800) |
Output Paper Cap.‡ | 250 | 150 | 150 | 150 |
ADF Capacity‡ | 100 | 70 | 70 | 50 |
Max. Scan Speeds (simplex/duplex)‡ | 52ipm / 104ipm | 29ipm / 58ipm | 29ipm / 58ipm | 29ipm / --- |
Display | 7" color touchscreen | 7" color touchscreen | 5" color touchscreen | 3.7" color touchscreen |
Network Interfaces | Gigabit Ethernet | Wi-Fi, Gigabit Ethernet | Wi-Fi, Gigabit Ethernet | Wi-Fi, Gigabit Ethernet |
Optional Interface‡ | Dual Band Wi-Fi (NC-9000W) | — | — | — |
In-Box Toner Yields (black/color pgs.)‡ | 6,500 / 5,000 pages | 3,000 / 1,800 pages | 3,000 / 1,800 pages | 3,000 / 1,800 pages |
Repl. Toner Yields (black/color pgs.)‡ | Up to 12,000 / 9,000 pages | Up to 9,000 / 8,000 pages | Up to 6,500 / 6,500 pages | Up to 4,500 / 4,000 pages |
Rec. Monthly Print Volume (pgs.)‡ | Up to 12,000 pages | Up to 4,000 pages | Up to 4,000 pages | Up to 3,000 pages |
TN810BK | TN810XLBK | TN810C | TN810M | TN810Y | DR810CL | |
---|---|---|---|---|---|---|
Description | Standard Yield | High Yield | Standard Yield | Standard Yield | Standard Yield | Drum Unit |
Approximate Page Yield‡ | 9,000 pages | 12,000 pages | 6,500 pages | 6,500 pages | 6,500 pages | 100,000 pages |
Cartridge Color | Black | Black | Cyan | Magenta | Yellow | Color |
What's In the Box | 1 Black Toner Cartridge | 1 Black Toner Cartridge | 1 Cyan Toner Cartridge | 1 Magenta Toner Cartridge | 1 Yellow Toner Cartridge | 1 Drum Unit |
Brother Genuine Reliability | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
Brother Cloud Apps‡ | Scan To Excel, Cloud Secure Print, Scan to Mobile, Scan to Searchable PDF, Fax Forward to Cloud / Email, Scan To PowerPoint, Scan to Word, Attach, Email and Print, Easy Scan to E-mail |
---|---|
Industry-Specific Certifications | Citrix Ready |
Mobile Device Compatibility‡ | AirPrint®, Brother Mobile Connect, Mopria® |
Operating Systems Compatibility‡ | Compatible with Windows, Mac®, and Linux. Visit support.brother.com for the latest OS compatibility and to download your machine’s drivers and software. |
Standard Interface(s) | Gigabit Ethernet, Hi-Speed USB 2.0 |
Standard Network Features‡ | Printing, Scan to E-mail Server (download), Scanning, PC Fax Send/Receive, Secure Function Lock, Secure Print |
Supported Network Protocols (IPv4) | APIPA (Auto IP), ARP, BOOTP, CIFS Client, Custom Raw Port/Port 9100, DHCP, DNS Resolver, FTP Client and Server, HTTP/HTTPS Server, ICMP, IMAP4, IPP/IPPS, LDAP, LLMNR Responder, LPR/LPD, mDNS, POP3, RARP, SMTP Client, SNMPv1/v2c/v3, SNTP Client, TELNET Server, TFTP Client and Server, Web Services (Print/Scan), WINS/NetBIOS Name Resolution |
Supported Network Protocols (IPv6) | NDP, RA, DNS Resolver, mDNS, LLMNR Responder, LPR/LPD, Custom Raw Port/Port 9100, IPP/IPPS, POP3, SMTP Client, FTP Client and Server, CIFS Client, TELNET Server, SNMPv1/v2c/v3, HTTP/HTTPS Server, TFTP Client and Server, ICMPv6, SNTP Client, LDAP, Web Services (Print/Scan), IMAP4 |

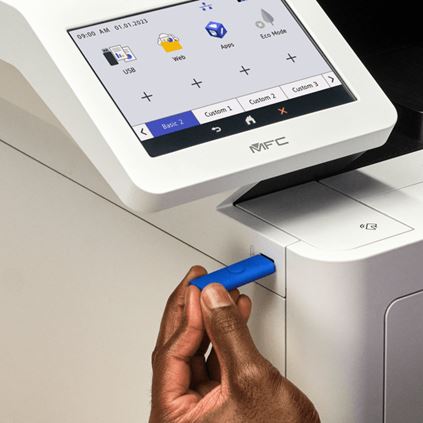

USB Host Location(s) | Front: Print from and scan to USB memory stick; external card reader‡, Back: Print storage with USB memory stick; external card reader‡ |
System Requirements | Download System Requirements † |
Black Copy Speed (max. ppm) | 42 |
---|---|
Color Copy Speed (max. ppm) | 42 |
Copy Capability | Black and White, Color |
Copy Resolution | 600 x 600 max. dpi |
Design Style | Flatbed |
Duplex Copying | Yes |
ID Copy | Yes |
N in 1 Functions | 2in1 / 4in1 |
Poster Function | No |
Reduction/Enlargement | 25%-400% |
Stand-Alone Copying | Yes |
Carton Dimensions (W" x D" x H") | 22.875 " x 26.125 " x 29.000 " |
---|---|
Carton Weight (lbs) | 91.500 |
Unit Dimensions (W" x D" x H") | 19.8" x 21.3" x 23" |
Unit Weight (lbs) | 79.7 |
Auto Fax Receive Date/Time Header | Yes |
---|---|
Broadcasting (Number of Locations) | 350 |
Call Waiting/Caller ID/Distinctive Ring Ready‡ | No/No/Yes |
Document Memory Backup | Yes |
Duplex Faxing | Yes |
External TAD Interface | Yes |
Fax Modem Speed | 33.6K bps |
Fax Page Memory‡ (max. pages) | 500 |
Faxing Capability | Black and White |
Fax/Telephone Switch | Yes |
Internet Fax‡ | Yes |
Out-of-Paper Reception | Yes |
PC Fax Capability (Send/Receive)‡ | Yes |
Quick Scan/Memory Transmission‡ (approx. sec./page) | 2.5 |
Total Auto Dial Locations | 300 |
LCD Display | 7" Color Touchscreen |
---|---|
Maximum Monthly Duty Cycle‡ | Up to 120,000 pages |
Recommended Monthly Print Volume‡ | Up to 12,000 pages |
Standard Memory (MB) | 2048 |
Toner Save Mode | Yes |
Automatic Document Feeder Capacity (max. pages‡) | 100 |
---|---|
Duplex Printing Capability | Yes |
Maximum Input for ADF (Width/Height) | 8.5"/14" |
Media Type | Plain, Glossy Paper‡, Envelopes (#10), Bond, Labels, Recycled Paper, Colored Paper, Letterhead |
Minimum Input for ADF (Width/Height) | 4.1"/5.8" |
Multi-purpose Tray Capacity‡ (sheets) | 100 |
Optional Paper Capacity‡ | LT-330CL‡ (250 sheets x3) or LT-340CL‡ (500 sheets x2) or TT-4000 and TC-4100‡ (Tower Tray with Stabilizer and Connector, includes 520 sheets x 4) |
Output Paper Capacity (sheets) | 250 |
Paper Handling Size - Multi-Purpose Tray | Envelope, Custom Sizes (3.0-8.5" (w), 5.0-14” (l)), Envelope (Com-10), Envelope (C5), Envelope (DL), Envelope (Monarch) |
Paper Handling Size - Paper Tray | Letter, Envelope, Custom Sizes (3.0-8.5" (w), 5.0-14” (l)), Legal, Executive, A4, A5, A6, B5, B6, Folio (8" x 13") |
Recommended Paper Brands | Xerox Vitality Multipurpose Printer Paper 20 lb., Avery Laser Label #5160, Hammermill Laser Paper 24 lb., NewPage Futura Laser Gloass 80 lb. Text/32 lb. Bond |
Sheet Weight - ADF (Min/Max) | 12-32 lbs |
Sheet Weight - Multi-Purpose Tray (Min/Max) | 16-61 lbs. (bond) |
Sheet Weight - Paper Tray (Min/Max) | 16-61 lbs. (bond) |
Sorting Function | Yes |
Standard Paper Input Capacity‡ (sheets) | 520 |
ENERGY STAR® Certified | Yes |
---|---|
EPEAT® Registered | Silver |
Machine Noise (Ready/Printing) | Inaudible / 56.5dB |
Operating Environment: Humidity | 20-80% (w/out condensation) |
Operating Environment: Temperature | 50-90°F |
Power Consumption - Power Off/Deep Sleep/Sleep/Ready/Printing | 0.02W / 1.1W / 19.4W / 95W / 790W |
Power Source | 110-120 V AC 50 / 60 Hz |
Automatic Duplex Printing | Yes |
---|---|
Black Print Speed ‡ (max. ppm) | 42 |
Borderless Printing | No |
Cloud Services‡ (Print) | Box/Box for Business, OneNote, SharePoint Online, Google Drive™/Google Drive for Business, Evernote®/Evernote Business, OneDrive/OneDrive for Business, Dropbox/Dropbox for Business |
Color Print Speed ‡ (max. ppm) | 42 |
Consumable Type | 4 Toner Cartridges and Drum |
CPU (Processor) Speed (MHz) | 800 |
Emulation(s) | BR-Script3‡, Epson FX, IBM Proprinter, PCL6 (PCL XL Class 3.0), PDF Version 1.7, XPS Version 1.0 |
PANTONE® Calibrated | Yes |
Print Resolution (max. dpi) | 2400 x 600 dpi class |
Print Technology | Color Laser |
Printer Driver Compatibility‡ | Windows, macOS®, Linux |
Advanced Scanning Features | File Split, Scan Preview, Color Drop Out, 2 to 1 Scan, Continuous Scan‡, ADF Auto Deskew, Blank Page Skip, Scan Profiles |
---|---|
Cloud Services‡ | Box/Box for Business, OneNote, SharePoint Online, Google Drive™/Google Drive for Business, Evernote®/Evernote Business, OneDrive/OneDrive for Business, Dropbox/Dropbox for Business |
Duplex Scan Speeds (black / color)‡ (max. ipm) | 104ipm / 104ipm |
Duplex Scanning | Yes |
Included Software | Brother iPrint&Scan (desktop) for Windows and Mac®, Brother Mobile Connect for iOS and Android™, Kofax PaperPort™ SE with OCR for Windows |
Interpolated Scan Resolution‡ (max. dpi) | 19200 x 19200 dpi |
Mobile Device Scanning‡ | Brother Mobile Connect |
Optical Scan Resolution (max. dpi) | 600 x 600 dpi |
Scan Driver OS Compatibility‡ | Windows, Mac OS®, Linux |
Scan Drivers Included‡ | TWAIN, WIA, SANE |
Scan File Formats | PDF Single page/Multi-page (Secure PDF, Searchable PDF, Signed PDF, PDF/A, High Compression PDF), Microsoft Office Excel (XLSX), Windows Bitmap (BMP), Microsoft Office Word (DOCX), HTML 3.2/4.0 (HTM), JPEG (JPG), XML Paper Specification (XPS), Portable Network Graphics (PNG), Microsoft Office PowerPoint (PPTX), RTF Word 2000/WordPad (RTF), TIFF Single-page/Multi-page (TIF), Text (TXT) |
"Scan To" Feature‡ | SharePoint, Easy Scan to Email, PC (File, Email, Image, OCR), FTP, USB Memory Stick, Network Folder (CIFS - Windows only), E-mail Server‡, SSH Server (SFTP), Cloud Services (Web Connect)‡ |
Scanning Capability | B/W and Color |
Simplex Scan Speeds (black / color)‡ (max. ipm) | 52ipm / 52ipm |

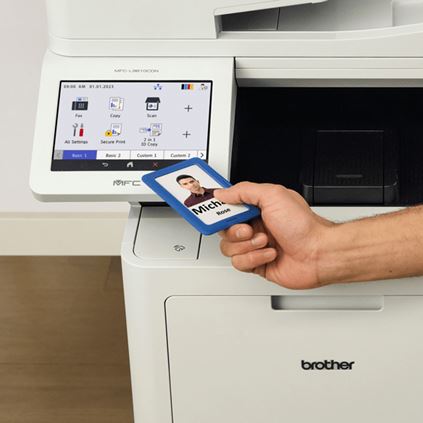

Security Functions | Integrated NFC Card Reader, Setting Lock, Active Directory (LDAP), Enterprise Security (802.1x), IPSec, LDAP, External Card Reader Compatibility, TLS/SSL, IP Filter, Syslog Reporting, Secure BIOS, Password Intelligence, Secure Function Lock, Lock Slot, Secure Print |
---|---|
Security Protocols (Wireless) | APOP, SMTP-AUTH, SSL/TLS (IPPS, HTTPS, SMTP, POP3, IMAP4), SNMP v3, Kerberos, IPSec, 802.1x (EAP-MD5, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS) |
Wireless Network Security | WEP 64/128 bit, WPA/PSK (TKIP/AES), WPA2-PSK (AES) |

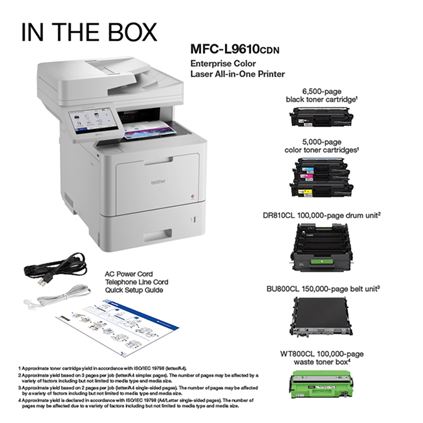

Carton Contents‡ | (1) Toner Cartridges (6,500 pages black / 5,000 pages color‡), (1) DR810CL Drum Unit (100,000 pages‡), (1) Belt Unit (150,000 pages‡), (1) Waste Toner Box (100,000 pages‡), AC Power Cord, Telephone Line Cord, Quick Setup Guide |
---|---|
Warranty | 1 Year Limited |
Maximum Monthly Duty Cycle ‡ | Maximum number of printed pages per month and can be used to compare designed durability between like Brother products. For maximum printer life, it is best to choose a printer with a duty cycle that far exceeds your print requirements. |
Media Type ‡ | Single-sheet via multi-purpose tray for glossy paper. |
Brother Mobile Connect ‡ / Mobile Device Compatibility ‡ | Requires connection to a wireless network. Brother Mobile Connect free app download is not available in all countries. AirPrint is a registered trademark of Apple Inc. Mopria™ is a registered trademark or service mark of Mopria Alliance, Inc. in the United States and other countries. Unauthorized use is strictly prohibited. |
Optional Paper Trays (capacity) ‡ | Maximum capacity based on using 20 lb. paper. Additional purchase required. |
PC Fax Capability (send/receive)† | Black/White only. PC Fax Receive not supported for Mac OS®. |
Quick Scan/Memory Transmission (approx. sec./page)‡ / Best Transmission Speed (approx. sec./page)‡ / Fax Page Memory (max. pages)‡ | Using ITU-T Test Chart #1 with JBIG coding and standard resolution. |
Recommended Monthly Print Volume‡ | The recommended range of monthly printed pages to achieve the best possible performance and printer life. Printers are intended to handle occasional usage beyond this range with little or no effect. Consistently printing above the recommended print volume, however, may adversely affect the print quality or life of the machine. It is always best to choose a printer with an appropriate recommended print volume to allow for any anticipated increase in printing needs. |
Scan Drivers Included‡ | To download drivers, visit support.brother.com. Scanning via MacOS requires the use of AirPrint. Server 2008/2012/2016/2019 network printing only. |
Scan Speeds (maximum)‡ | Color and monochrome scan speed with all advanced features turned off, Letter at 300dpi. |
USB Host Location(s) | PDF version 1.7 , JPEG, PRN (created by the machine's own printer driver), TIFF (scanned by Brother models), XPS version 1.0. |
Brother Cloud Apps ‡ | Requires an Internet connection. |
"Scan To" Feature† | Network Folder (CIFS) is for Windows only. Cloud services require an Internet connection and an account with the desired service. Scan to mobile devices requires a connection to a wireless network. |
Operating Systems Compatibility‡ / Printer Driver Compatibility‡ | For the latest OS compatibility and to download drivers visit support.brother.com. Printing or scanning via macOS requires the use of AirPrint. Mac printer drivers are not required. Server 2012/2016/2019 network printing only. |
Included Software‡ | Additional download required. Software application compatibility may vary based on operating system. App availability may vary based on country. |
Automatic Document Feeder Capacity (max. pages)‡ / Multi-purpose Tray Capacity (sheets)‡ / Output Paper Capacity (sheets) / Standard Input Paper Capacity (sheets)‡ | Maximum capacity based on using 20 lb. paper. |
Carton Contents ‡ | Approximate toner cartridge yield in accordance with ISO/IEC 19798 (letter/A4). Drum yield is approximate based on 3 pages per job (letter/A4 single-sided pages). The number of pages may be affected by a variety of factors including but not limited to media type and media size. Belt Unit yield is approximate based on 2 pages per job (letter/A4 single-sided pages). The number of pages may be affected by a variety of factors including but not limited to media type and media size. Waste Toner Box yield is approximate and is declared in accordance with ISO/IEC 19798 (A4/Letter single-sided pages). The number of pages may be affected due to a variety of factors including but not limited to media type and media size. |
Cloud Services (Web Connect) ‡ | Requires an Internet connection and an account with desired service. All referenced trademarks and registered trademarks are the property of their respective companies. ©2022 Google LLC All rights reserved. Android and Google Drive are trademarks of Google LLC. EVERNOTE is a trademark of Evernote Corporation and used under a license. |
Color / Print Speed (max. ppm) ‡ | Based on one-sided printing. Change from default setting required. |
Emulation(s) ‡ | BR-Script3 is PostScript®3™ compatible. |
First Time to Print ‡ | From ready mode and standard tray. |
Images ‡ | Images are for illustrative purposes only. |
